Converting a Simple HAL-based STM32F1 blinky to STM32F4

Created

Categories: , , , , ,

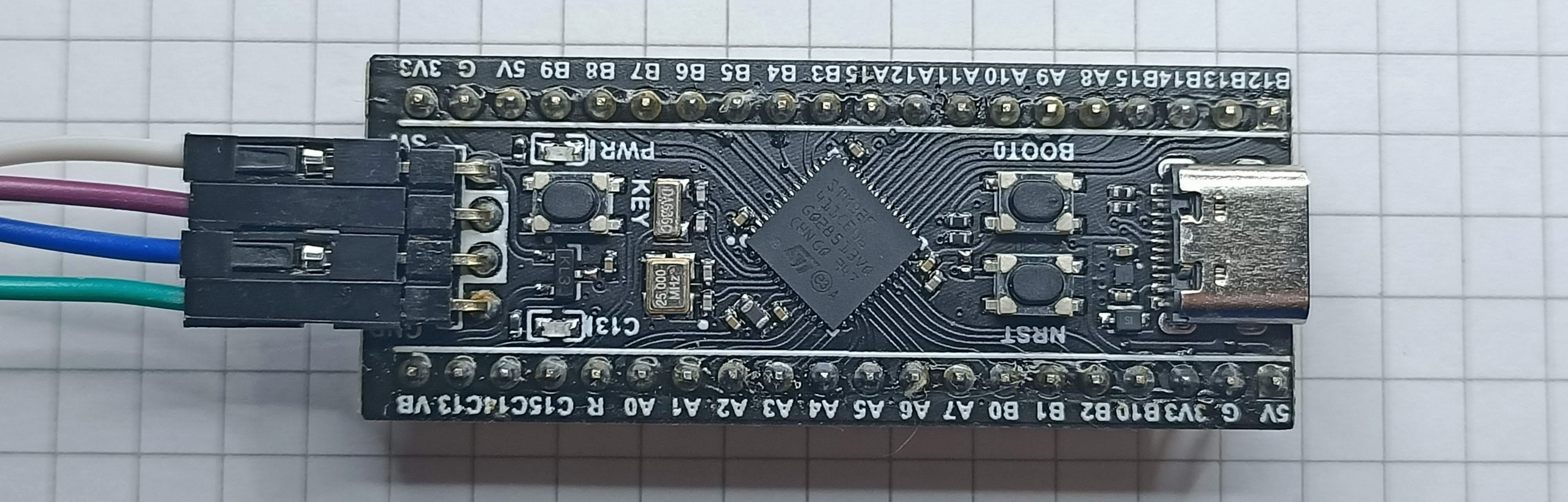

STM32F411 Black Pill

Yes, I know I could just grab the blink example from the stm32f4xx-hal repo. But this much more time-consuming way teaches more about both chips, and increses my familiarity with the all-important reference manuals.

  • Clone the F1 repo, give clone a second parameter to change the name of the folder you clone into
  • Then disconnect it from the original remote, because you wouldn’t want to push the converted code to the original repo
git clone https://github.com/GregWoods/01-blink-f1-rs.git 01-blink-f4-rs
  • Create the new repo in github
gh repo create 01-blink-f4-rs
  • And follow the instructions on the new repo default page, to connect your new remote to your local repo
got remote remove origin
git remote add origin https://github.com/GregWoods/01-blink-f4-rs.git
git push -u origin master

Change the Setup

  • .cargo/config
    • change thumbv7m-none-eabi to thumbv7em-none-eabihf (2 instances)
    • change arm-none-eabi-gdb to arm-none-eabihf-gdb (1 instance)
  • cargo.toml
    • change your package name from 01-blink-f1-rs to 01-blink-f4-rs
    • change the hal dependency to [dependencies.stm32f1xx-hal]
    • and change the features list: remove stm32f103, use stm32f411 (or ```stm32f401`` for the cheaper verison of the black pill)
    • Add a version number to stm32f4xx-hal. Currently 0.7.0 (we need this the first time, becaue we don’t have a valid value in cargo.lock) Trying to build will report a list of possible versions)
    • remove the ```medium`` feature from the hal crate
  • memory.x
    • The FLASH and RAM start addresses are the same
    • But the sizes for the stm32f411 are: FLASH 512K; RAM: 128K (as far as I can tell)
  • .vscode/launch.json
    • replace STM32F103VCT6 with STM32F411CEU6
    • Replace target/stm32f1x.cfg with target/stm32f4x.cfg
    • Change the svd from STM32F103.svd to STM32F411.svd
    • Change the executable path, replace thumbv7m-none-eabi with thumbv7em-none-eabihf
  • Go and download STM32F411.svd
  • main.rs
    • change the use statement from stm32f1xx_hal to stm32f4xxx_hal
    • replace pac from the ‘use’, with stm32 - an odd naming inconsistency between the stm32f1 and stm32f4 hal projects
    • rustup target install thumbv7em-none-eabihf to install the missing bits of the toolchain

Change the Code

Run cargo build and fix the bugs one by one referring to the hal repo: github.com/stm32-rs/stm32f4xx-hal

I’m not entirely sure you’ll get the errors come back in the same order as listed here! It is likely I fixed more than one at once.

Error 1

16 | use stm32f1xx_hal::{
   |     ^^^^^^^^^^^^^ use of undeclared type or module `stm32f1xx_hal`

An easy one. Change stm32f1xx_hal to stm32f4xx_hal

Error 2

18 |     pac,
   |     ^^^ no `pac` in the root

In this hal, the peripheral access crate (pac) is called stm32. Which leads to our next fix…

Error 3

    |     let dp = pac::Peripherals::take().unwrap();
    |              ^^^ use of undeclared type or module `pac`

Change to

    let dp = stm32::Peripherals::take().unwrap();

Error 4

    |     let mut flash = dp.FLASH.constrain();
    |                              ^^^^^^^^^ method not found in `stm32f4::stm32f411::FLASH`

‘constrain’ is not a thing in the Reference Manual. So this is something added by the HAL, probably to keep the rust compiler happy. In the hal code, inside flash.rs is the following comment… /// Constrains the FLASH peripheral to play nicely with the other abstractions

The stm32f4xx-hal doesn’t have a flash.rs. A quick search in the github repo shows it uses stm32.FLASH from the PAC. Before I went down a rabbit hole, I noticed that the probably fix for the next will mean we don’t need to use FLASH at this time. So I remove the line. I will have to revisit this sometime, but not today!

Error 5

    |     let clocks = rcc.cfgr.freeze(&mut flash.acr);
    |                           ^^^^^^ expected 0 parameters

‘freeze’ doesn’t appear to be a feature of RCC_CFGR registers as far as I can tell. This is something “Rusty”. According to ‘freeze’ in the stm32f1xx-hal, an ‘acr’ parameter exists, but is not used! It looks like the stm32f4 hal has simply removed this unused param, so we should be able to remove it here. Easy!

Error 6

    |     let mut gpioc = dp.GPIOC.split(&mut rcc.apb2);
    |                              ^^^^^ expected 0 parameters

The syntax of ‘splitting’ the GPIO port remains a mystery to me for now, and passing rcc.apb2 is even more confusing. The fact that the stm32f4 doesn’t require this parameter is all I need to know for now!

Error 7

     |
     |     let mut led = gpioc.pc13.into_push_pull_output(&mut gpioc.crh);
     |                              ^^^^^^^^^^^^^^^^^^^^^ expected 0 parameters

Examine the Reference Manual and HAL. In the stm32f4 reference manual, there are no search results for CRL or CRH. Things are obviously done a bit differently to the stm32f1, where ```CRH`` is ‘Port Configuration Register High’

stm32f1

For port configuration, the MODE bits(2 bits per gpio line) and CNF bits (also 2 bits per ‘pin’) for each GPIO pin are interleaved, so we can only store 8 pins worth of setting within 32 bits.

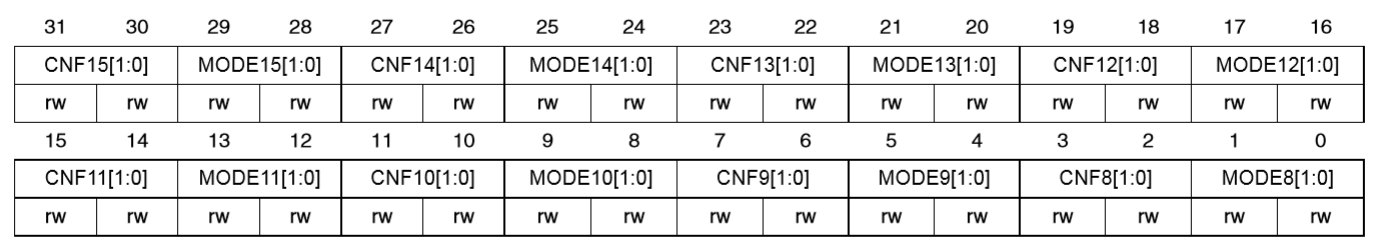

images/stm32f1-port-config-crh.png

The CRL register is the same, but for GPIO pins 0..7

stm32f4

The arragement is simpler for this chip. The settings for all 16 pins on a single GPIO port are stored in one 32 bit register.

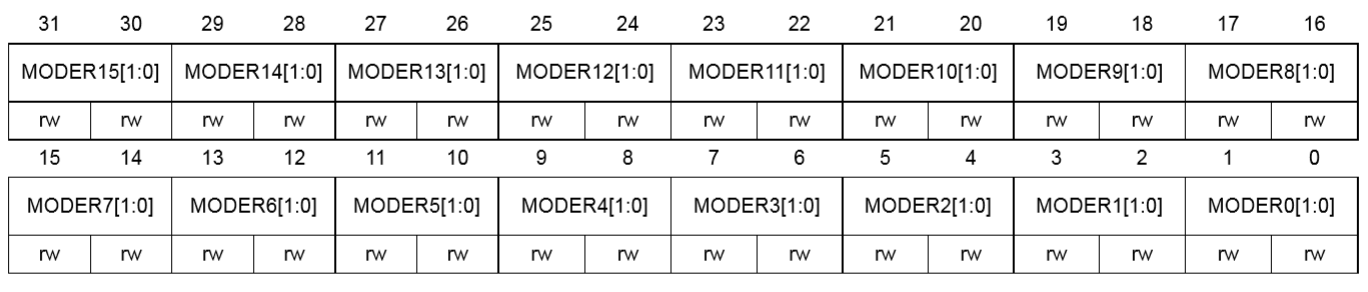

images/stm32f4-port-mode-register.png

Therefore the HAL simply doesn’t need to refer to CRH or CRL, it just uses the MODE register directly.

Error 8

    |     let mut timer = Timer::syst(cp.SYST, &clocks).start_count_down(1.hz());
    |                     ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ expected 3 parameters

Looking at the stm32f4xx-hal code, in timer.rs, we find:

    impl Timer<SYST> {
        /// Configures the SYST clock as a periodic count down timer
        pub fn syst<T>(mut syst: SYST, timeout: T, clocks: Clocks) -> Self
        where
            T: Into<Hertz>,

well, this is handy - the timeout in Hertz is set in the constructor, instead of in the chained start_count_down.

Fixing that has shown another error

    |
    |     let mut timer = Timer::syst(cp.SYST, 1.hz(), &clocks);
    |                                                  ^^^^^^^
    |                                                  |
    |                                                  expected struct `stm32f4xx_hal::rcc::Clocks`, found `&stm32f4xx_hal::rcc::Clocks`
    |                                                  help: consider removing the borrow: `clocks`

As is often the case, the compiler suggests the fix. I’m unsure of the consequences of giving syst ownership of clocks, but that is for another day.

Our converted line looks like:

    let mut timer = Timer::syst(cp.SYST, 1.hz(), clocks);

We can fix a couple of compiler warnings about variables which don’t need to be mutable, and everything is good.

This should all now build, and the debugger can step into the code.
